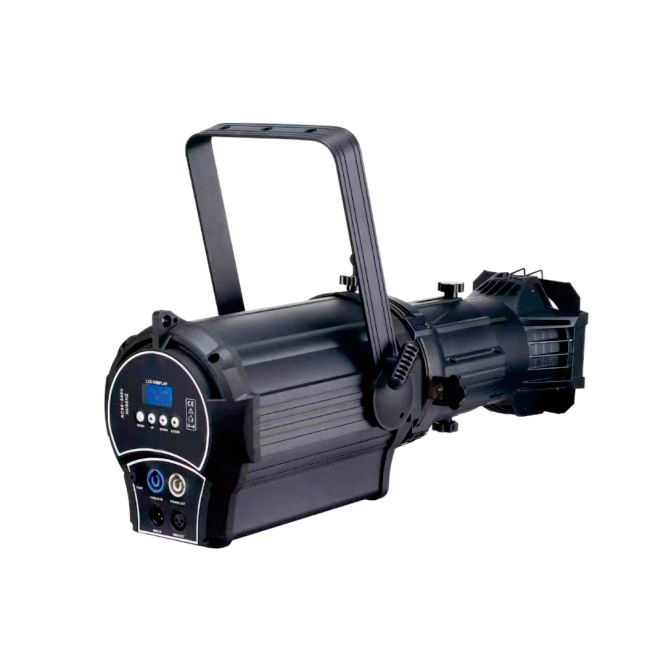

LED imaging light
LED imaging light
Light angle: 10 °/19 °/26 °/36 °/50 ° (optional)
Electronic strobe: 1-25 times/second
Heat dissipation: The heat pipe is equipped with a noiseless fan to quickly remove LED heat
Technical parameter
GX-T200
LED imaging light
Voltage: AC100V-240V, 50/60HZ
Rated power: 250W
Light source: LED COB module, 200W, white light
Color temperature: 3200K/5600K (optional)
Luminous flux: 17000lm/18000lm
Color rendering index (CRI): ≥ 95Ra
Light source lifespan:>50000 hours
Electronic dimming: linear 0-100%
Light angle: 10 °/19 °/26 °/36 °/50 ° (optional)
Electronic strobe: 1-25 times/second
Heat dissipation: The heat pipe is equipped with a noiseless fan to quickly remove LED heat
Display: LCD screen display
Signal: Input and output XLR3Pin and XLR5pin
Control protocol: International standard DMX512255 level
Control mode: DMX512/self-propelled/master-slave
Channel: 2 channels
Shell structure: High quality die cast aluminum
Protection level: IP20
Operating environment: -20 ℃ -45 ℃
Net weight: 6.2KG
Significant features: Soft and uniform light output, smooth dimming, excellent optical system,
Clear imaging without virtual edges, stable color temperature, clean and tidy cutting light.
Suitable for professional stage lighting and ear slapping in theaters, auditoriums, studios, and other venues.
