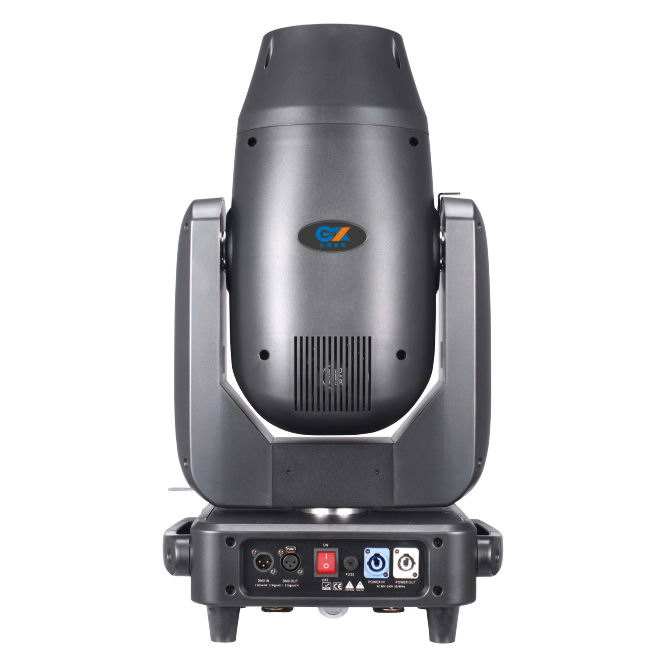

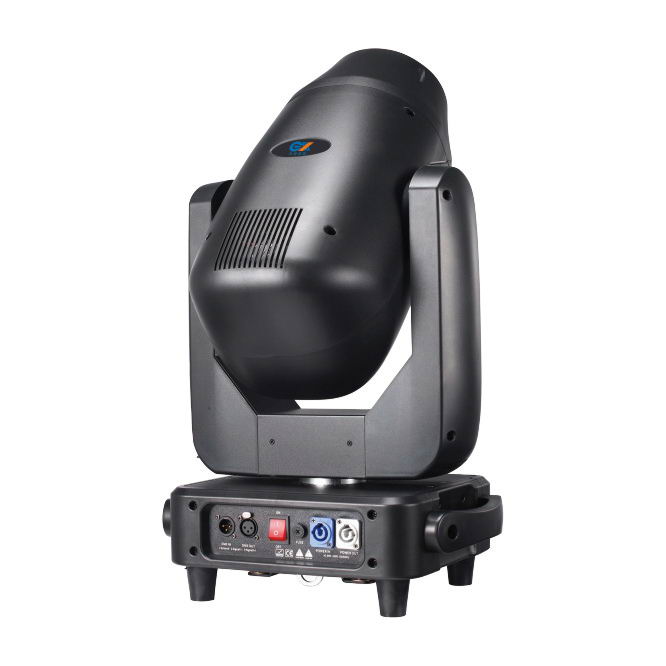

400LED 3in1 computer light
400LED 3in1 computer light
Technical parameter
GX-400BS
400LED 3in1 computer light
Input voltage: AC110v -240v/50-60HZ
Light source specification 400W
Light source lifespan: 20000 hours
Luminous illumination: 5 meters 120000 lm
Rated power: 430 W
Channel mode: 23ch
Horizontal scanning: 540 degrees (16 bit precision scanning) electronic error correction
Vertical scanning: 270 degrees (16 bit precision scanning) electronic error correction
Dimming system: 0-100% linear adjustment
Focusing system: Linear adjustment from 4 meters to 50 meters
Atomization system: 1 independent atomization effect, soft and natural light spot
Magnification angle: 4-35 degrees
High speed strobe: 0-30 times/second. The speed control strobe effect is adjustable. Strobe macro function
Color: 8 colors+white light, half color function
Color matching system: Linear CMY+CTO color matching system.
Fixed modes: 12 fixed modes+white light
Rotating pattern: 7 glass patterns, each of which can be independently reversed
Prism system: Standard single six row prisms and 8 prisms, each prism can independently forward and backward
Macro functions: console reset function, self-propelled mode, master-slave mode
Display mode: LCD display, button+touch dual operation mode
Control signal: International standard DMX512. With RDM function, software can be upgraded online and address codes can be dialed
Cooling method: using axial flow fans to enhance cooling
Safety device: Equipped with electronic temperature control overheat protection, when the overheat system fails, the electronic temperature control automatically loses power protection
Appearance material: High temperature resistant plastic
Working environment: -20 ° C -40 ° C
Protection level: IP20
Net weight of product: 22.5KG
Product size: 38 * 27 * 65CM (L * W * H)
