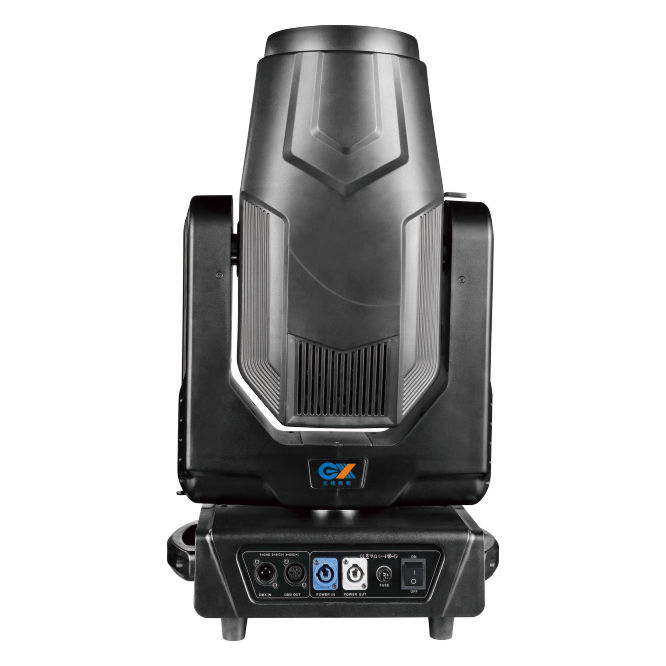

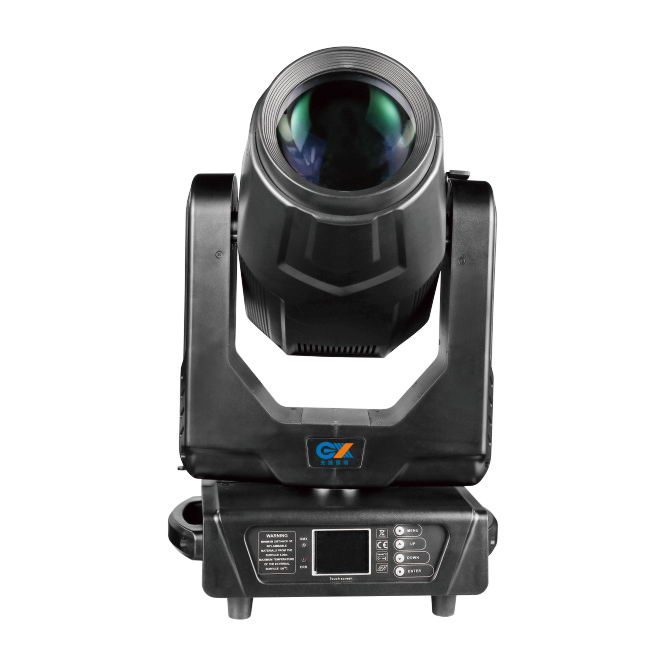

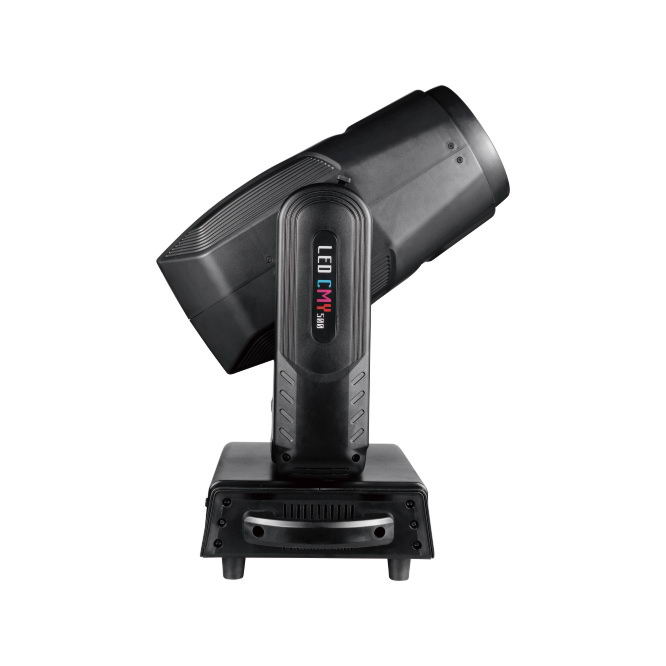

500W LED Cutting Light
500W LED Cutting Light
Focusing system: linearly adjustable from 4 meters to 50 meters
Atomization system: 1 independent atomization effect, soft and natural light spot
Zoom angle; The beam is 2.7-40 "dyed 4-40" pattern 4-40
Technical parameter
GX-Q500
500W LED Cutting Light
Color temperature: 7500K
Color rendering index: 75
Input voltage: AC90V-240V/50-60HZ
Light source specification: ECO350-80-R00-000
Light source lifespan: 20000 hours
Luminous illumination: 4 meters 120000LM
Output aperture: 138MM
Rated power: 600W
Channel mode: 22/27 channels
Horizontal scanning: 540 degrees (16bi precision scanning) electronic error correction
Vertical scanning: 270 degrees (16bi precision scanning) electronic error correction
Dimming system: 0-100% linear adjustment
Focusing system: linearly adjustable from 4 meters to 50 meters
Atomization system: 1 independent atomization effect, soft and natural light spot
Zoom angle; The beam is 2.7-40 "dyed 4-40" pattern 4-40
High speed strobe: 0-30 seconds. Adjustable speed strobe effect, strobe macro function
Color: 8 colors+white light. Color half color function
Color system; Independent CMY+CTO color mixing system.
Fixed pattern: 12 fixed patterns+white light
Rotating pattern: 7 glass patterns, each of which can be independently reversed
Prism system: Standard with single 6-row prisms and 8-row prisms, each prism can independently forward and reverse 1
Protection level: IP20
Net weight of product: 22.5KG
Product size: 38 * 27 * 65CM (L * W * H)
Paper package size: 54 * 45 * 61CM
500W LED Cutting Light
Color temperature: 7500K
Color rendering index: 75
Input voltage: AC90V-240V/50-60HZ
Light source specification: ECO350-80-R00-000
Light source lifespan: 20000 hours
Luminous illumination: 4 meters 120000LM
Output aperture: 138MM
Rated power: 600W
Channel mode: 22/27 channels
Horizontal scanning: 540 degrees (16bi precision scanning) electronic error correction
Vertical scanning: 270 degrees (16bi precision scanning) electronic error correction
Dimming system: 0-100% linear adjustment
Focusing system: linearly adjustable from 4 meters to 50 meters
Atomization system: 1 independent atomization effect, soft and natural light spot
Zoom angle; The beam is 2.7-40 "dyed 4-40" pattern 4-40
High speed strobe: 0-30 seconds. Adjustable speed strobe effect, strobe macro function
Color: 8 colors+white light. Color half color function
Color system; Independent CMY+CTO color mixing system.
Fixed pattern: 12 fixed patterns+white light
Rotating pattern: 7 glass patterns, each of which can be independently reversed
Prism system: Standard with single 6-row prisms and 8-row prisms, each prism can independently forward and reverse 1
Protection level: IP20
Net weight of product: 22.5KG
Product size: 38 * 27 * 65CM (L * W * H)
Paper package size: 54 * 45 * 61CM
